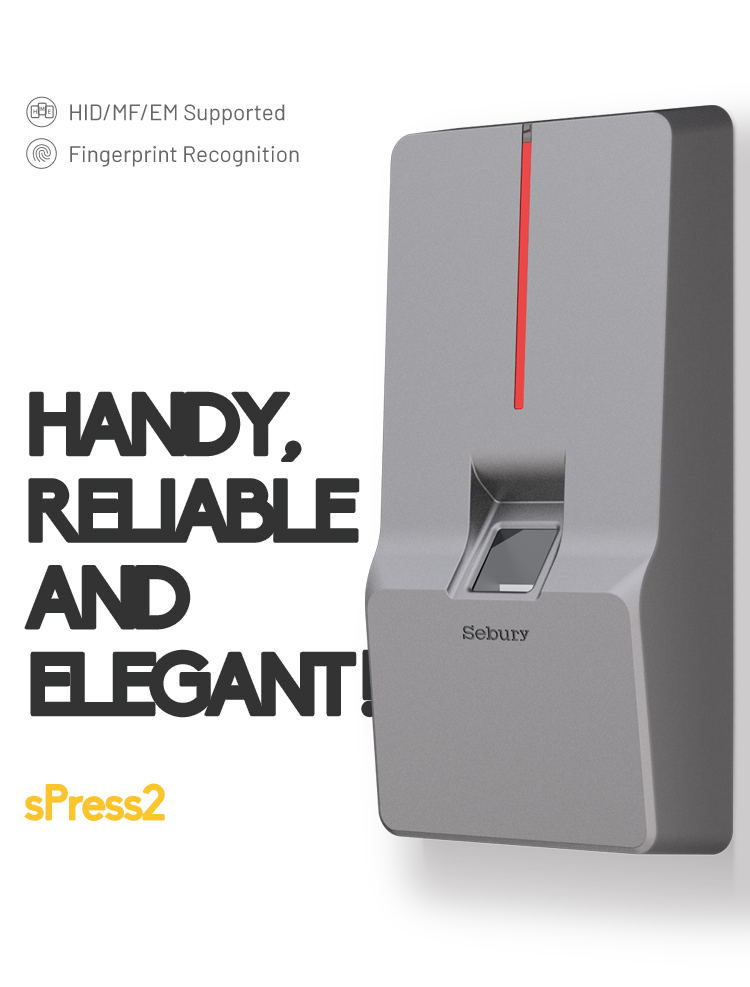

All-metal Fingerprint Standalone Access Control/Reader
Material: Zinc Alloy
Input Voltage:DC10~14V
Idle Current:≤50mA
Product Dimension:170 * 83 * 35mm​​

1.Adopt the non-electromagnetic shielding metal access control patent technology, patent No.: CN210610015U

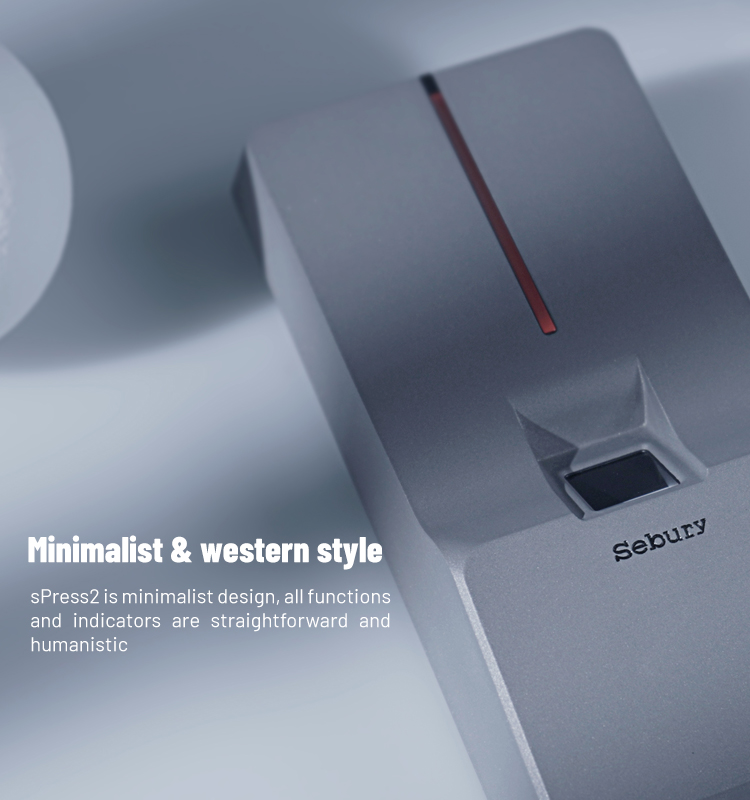

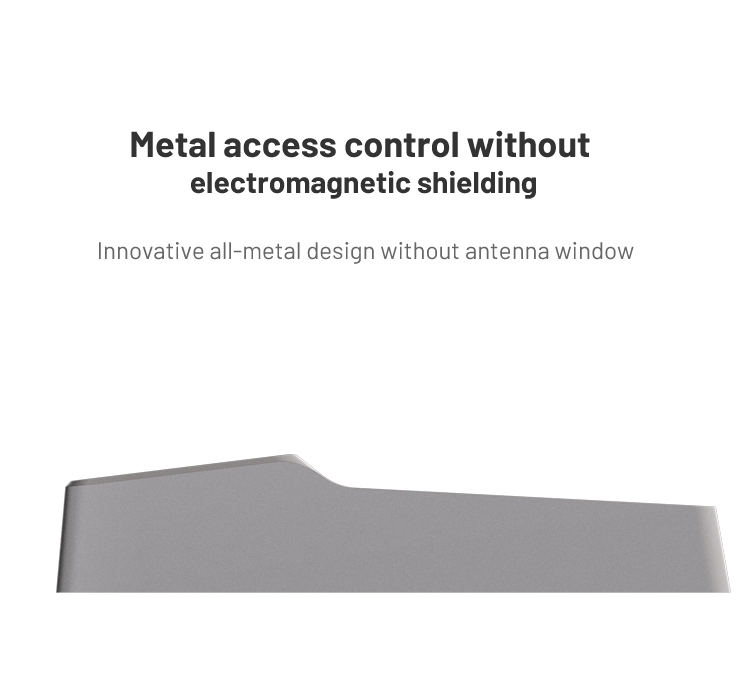

2.Innovative all-metal design,no antenna window, European and American style

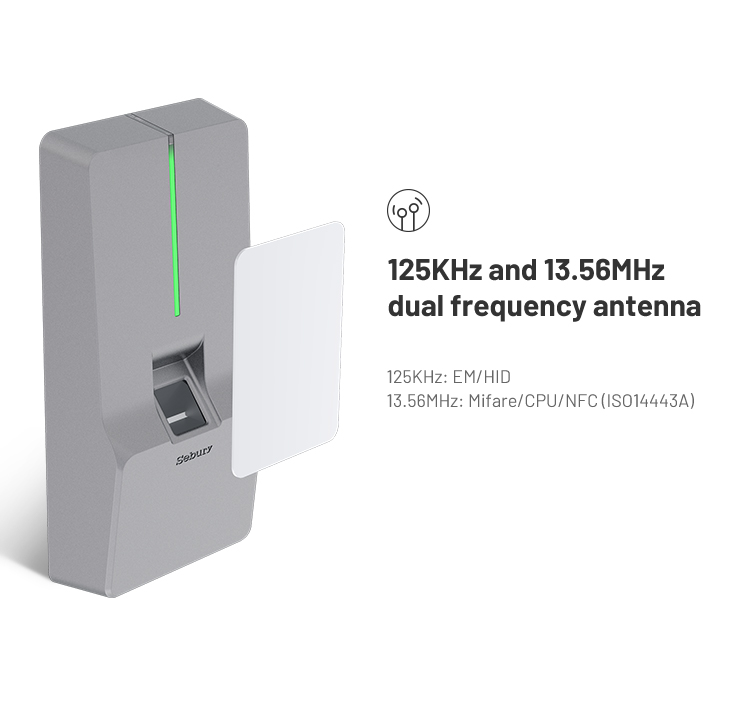

3.125KHz and 13.56MHz dual-band antenna, support EM/HID/MF/NFC cards

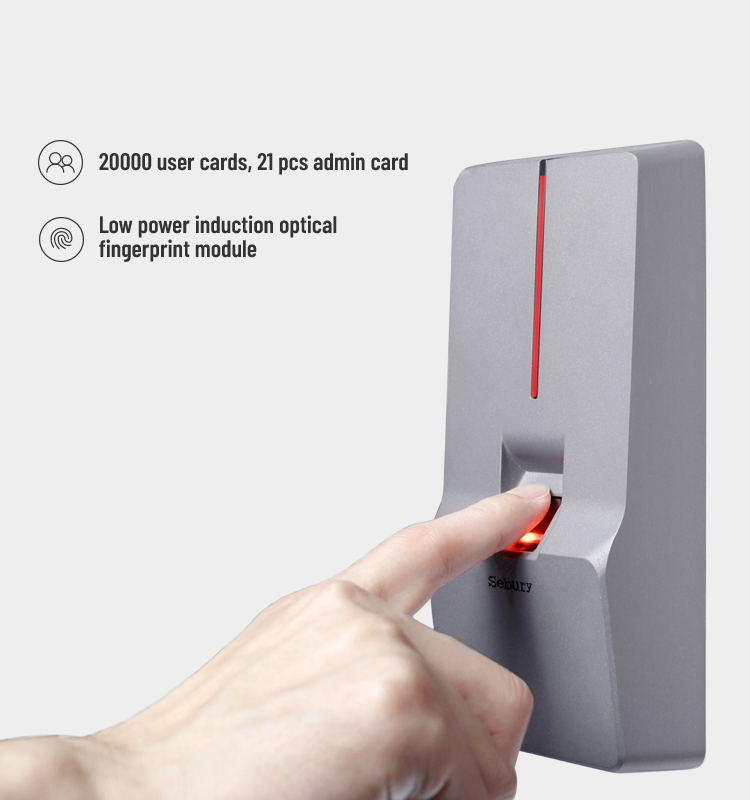

4.Low power induction optical fingerprint module

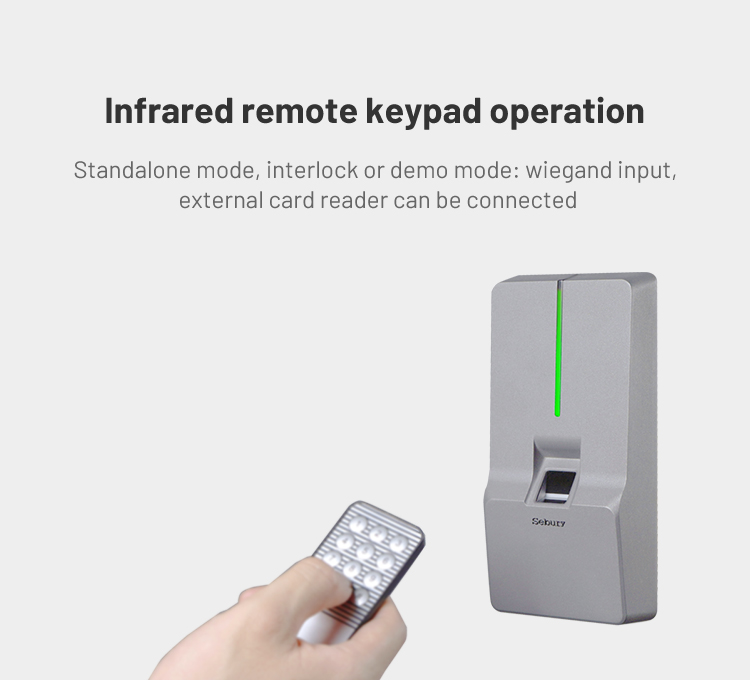

5.Infrared remote keypad operation
6.Standalone mode, interlock or demo mode: wiegand input, external card reader can be connected
7.Reader mode: wiegand output, LED and Buzzer control input
8.5 ways to open door:  card, fingerprint, multiple users and so on
9.Support Super-open card (fingerprint), Add card, Delete card, Anti-duress card, Authorization card and Normal-open card (fingerprint) operation
10.Support setting card (fingerprint) operation, use to enter administration menu quickly
11.Infrared anti-tamper technology, can alarm at night

12.LED indicator brightness and Buzzer voice can be adjusted

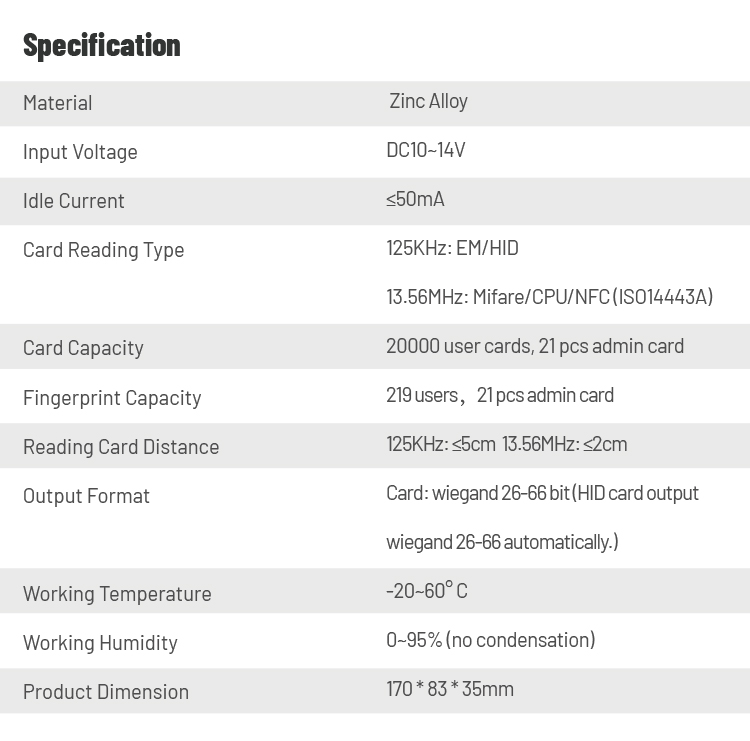

Material: Zinc Alloy

Input Voltage:DC10~14V
Idle Current:≤50mA
Card Reading Type:125KHz: EM/HID 13.56MHz: Mifare/CPU/NFC (ISO14443A)

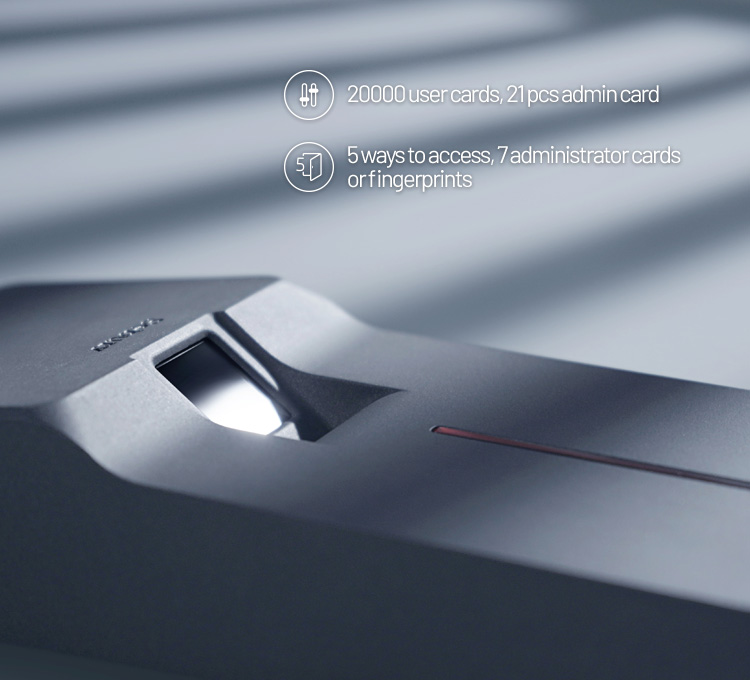

Card Capacity:20000 user cards, 21 pcs admin card
Fingerprint Capacity:219 users,21 pcs admin card
Reading Card Distance:125KHz: ≤5cm  13.56MHz: ≤2cm
Output Format:Card: wiegand 26-66 bit (HID card output wiegand 26-66 automatically.)
Working Temperature:-20~60° C
Working Humidity:0~95% (no condensation)
Product Dimension:170 * 83 * 35mm
