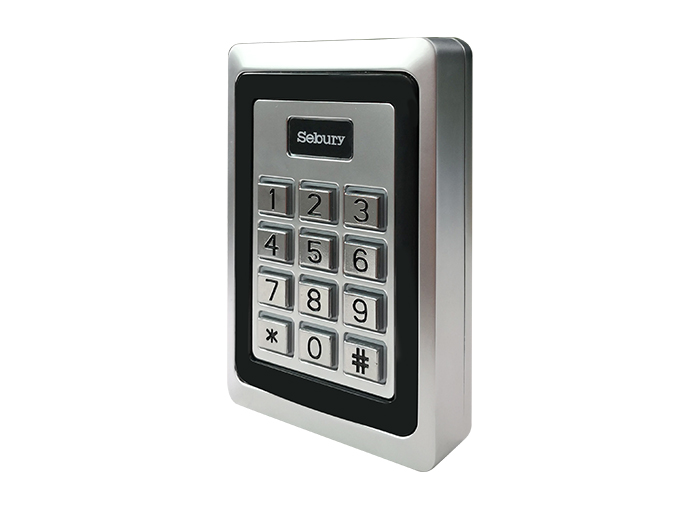

Product model: mKey
Product name: Metal standalone access control
Working temperature: - 20 ~ 50 ° C
Card reader type: EM
Product size: 104 * 69 * 19 mm

This product uses high-strength zinc alloy body, Proximity card (EM card, also known as ID card) or password to open the door, built-in highly integrated microcontroller, simple circuit, safe and reliable, economical and durable, suitable for office, villa etc.


1000 user cards bound with 1000 user passwords, and the user can modify password by himself;

Opening method: card, card with password together, card or password, password;

Opening time: 50mS, 1-98 seconds for normal mode, 99 seconds for switch mode;

Electric lock mode: power-on unlocking (such as electric rim lock, electric strike), power-off unlocking (such as electric bolt, magnetic lock);

Built-in high-current MOS tube, can directly drive the electric lock, and can resist strong magnetic unlocking;

Safe mode can be set: 10 times invalid card or password will automatically lock the machine for 10 minutes;

An external door button can be used to facilitate opening the door from the inside;

The safety screw is locked to prevent malicious disassembly.


Technical parameters:

Working voltage: DC12±2V
Static current: ≤20mA
Operating current: ≤100mA
Drive electric lock current: ≤3A
Working environment temperature: -20~50°C
Working environment humidity: 0~95% (no condensation)

Maximum card reading distance:5cm
