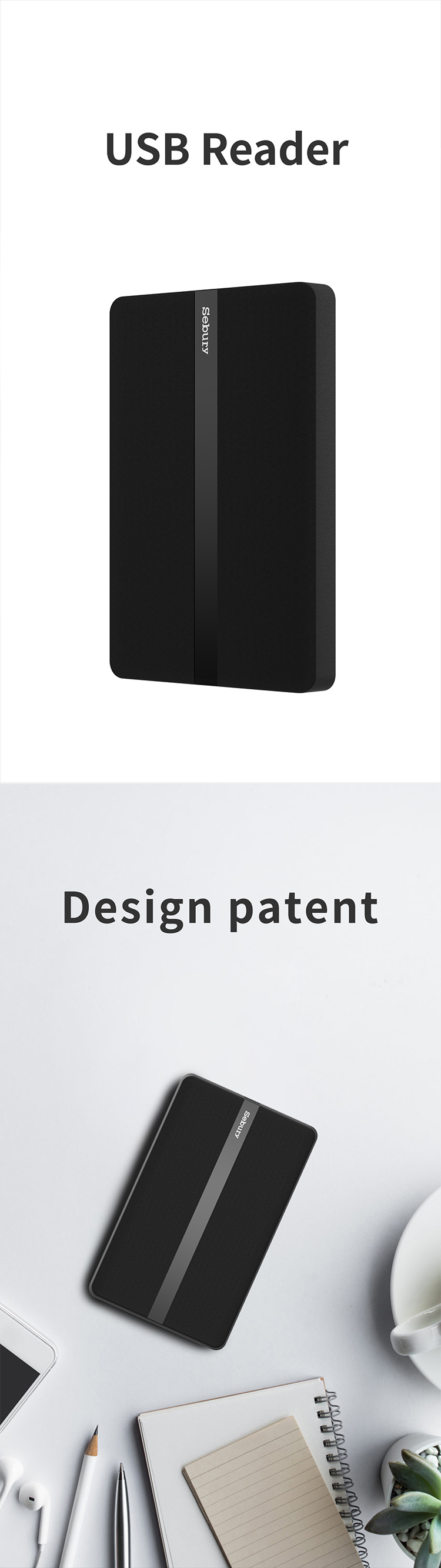

USB Reader M/EM
Bluetooth standalone access control
​Working frequency:M:13.56Mhz EM:125Khz
Reading distance:0~80mm
Dimension:115 * 69.9 * 14.5mm

1. 125KHz/13.56MHz non-contact smart card read (read-only)
2. It can be plugged in at will (plug in and read to use) , no external power supply is required
3. The user does not need to load any driver, the reading is stable, accurate and reliable
4. Support Win XP/Win CE/Win 7/Win 10ista/Linux/Android

5. The output format can be customized


Specification

Working frequency:M:13.56Mhz  EM:125Khz
Reading type:M:ISO14443A protocol such as MF\S50\S70  EM:TK4001, EM4100 and other ID cards

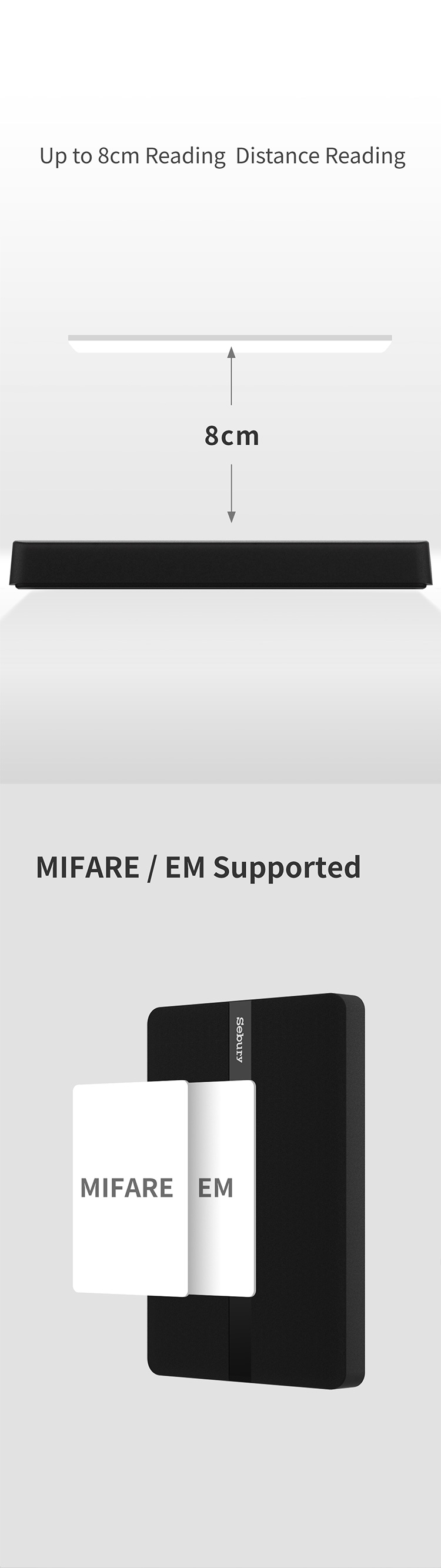

Reading distance:0~80mm
Working temperature:-20~70°C
Operating Voltage:5V
Working current:100mA
Operating system:Win XP\Win CE\Win 7\Win 10\LIUNX\Vista\Android
Dimension:115 * 69.9 * 14.5mm
