Reader1

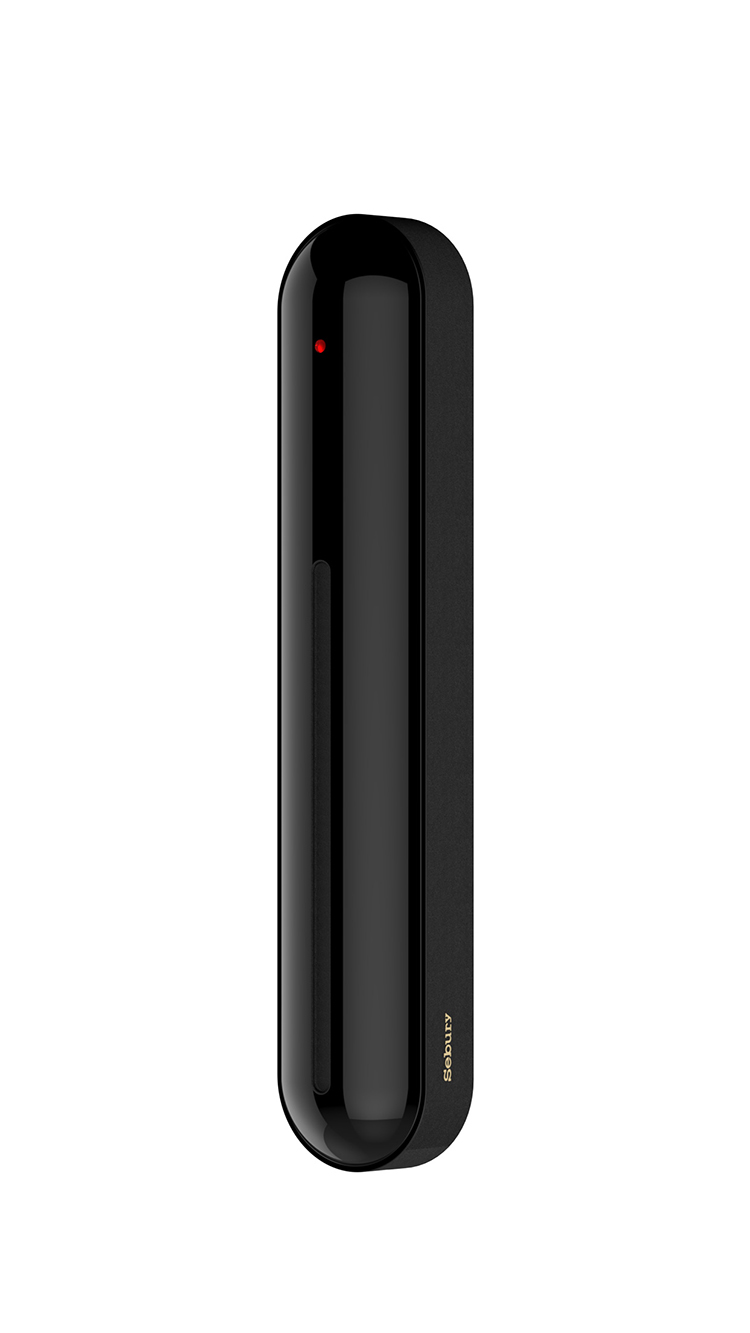

Access Control Card Reader
Material:PC+ABS
Input Voltage:DC12V±10%
Idle Current:≤35mA
Product Dimension:150 * 30 * 20mm

1.The slim hemispheric body is inspired by observing the stars in planetariums
2.125KHz and 13.56Mhz Dual-band antenna, support to read EM/HID/MF/NFC cards
3.Can change the output format and the card reading type by sGuard
4.Fully potted process, IP68


Specification

Material:PC+ABS
Input Voltage:DC12V±10%
Idle Current:≤35mA
Card Reading Type:125KHz: EM/HID  13.56MHz: MF/CPU/NFC (ISO14443A)
Reading Card Distance:125KHz: ≤5cm  13.56MHz: ≤2cm

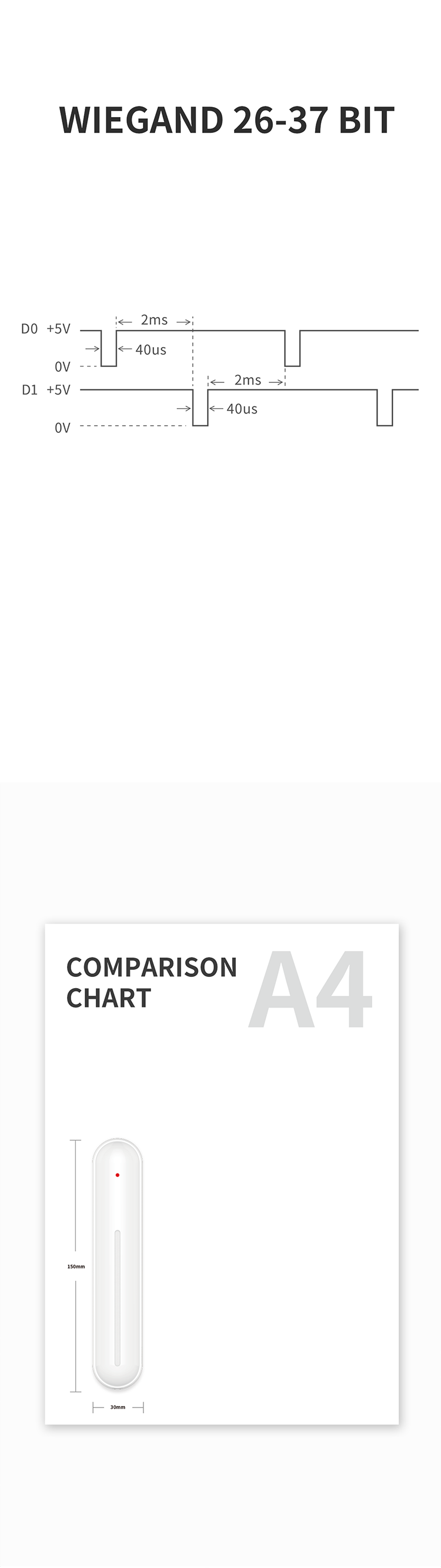

Output Format:Wiegand 26-37 bit (default wiegand 26 bit, customized other format, HID card output wiegand 26-37 automatically.)
Working Temperature:-20~50° C
Working Humidity:0~95% (no condensation)
Product Dimension:150 * 30 * 20mm
