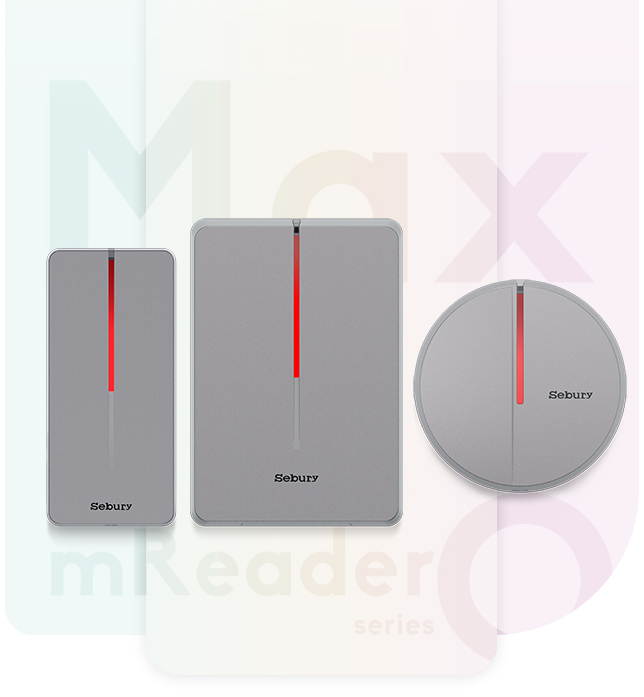

mReader O
All-metal Access Control Card Reader
Material:Zinc Alloy
Input Voltage:DC12V±10%
Idle Current:≤35mA
Product Dimension:83 * 83 * 27.3mm

1.Adopt the non-electromagnetic shielding metal access control patent technology, patent NO.:CN210610015U

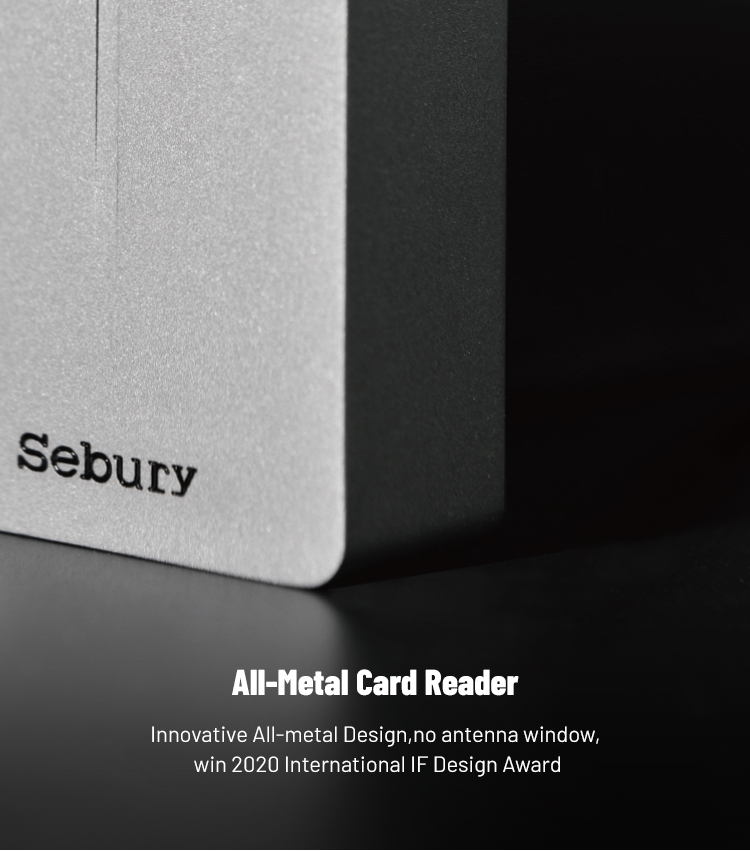

2.Innovative All-metal Design,no antenna window

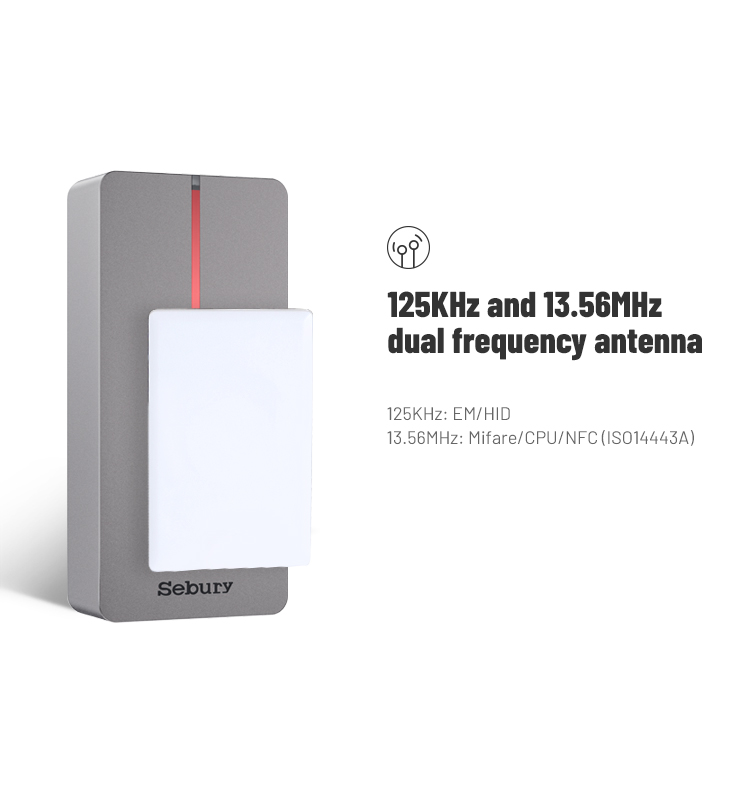

3.125KHz and 13.56Mhz Dual-band antenna, support to read EM/HID/MF/NFC cards

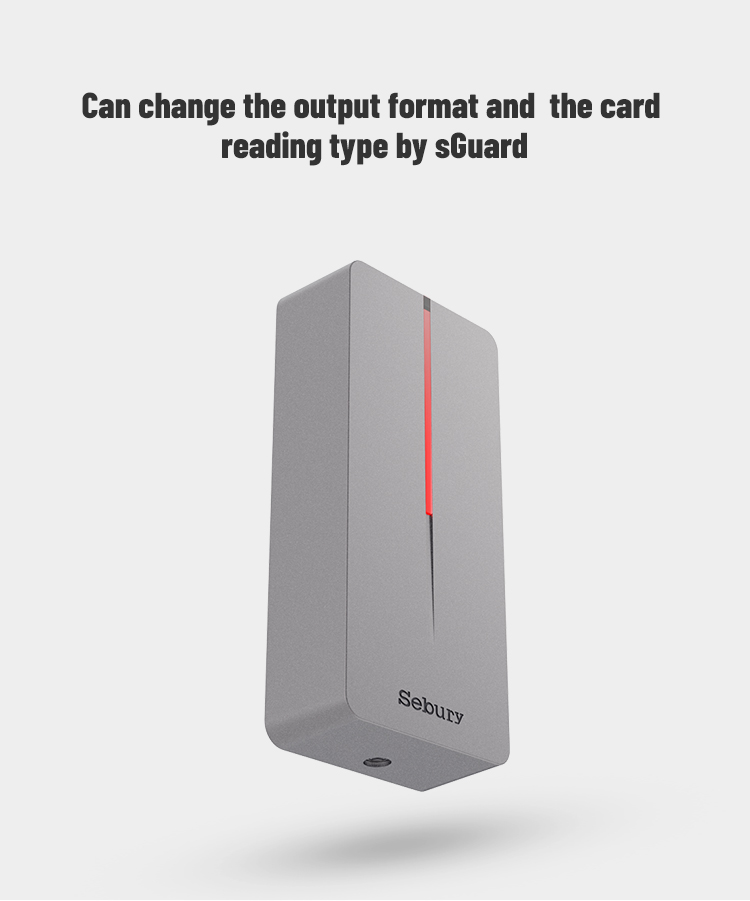

4.Can change the output format and the card reading type by sGuard

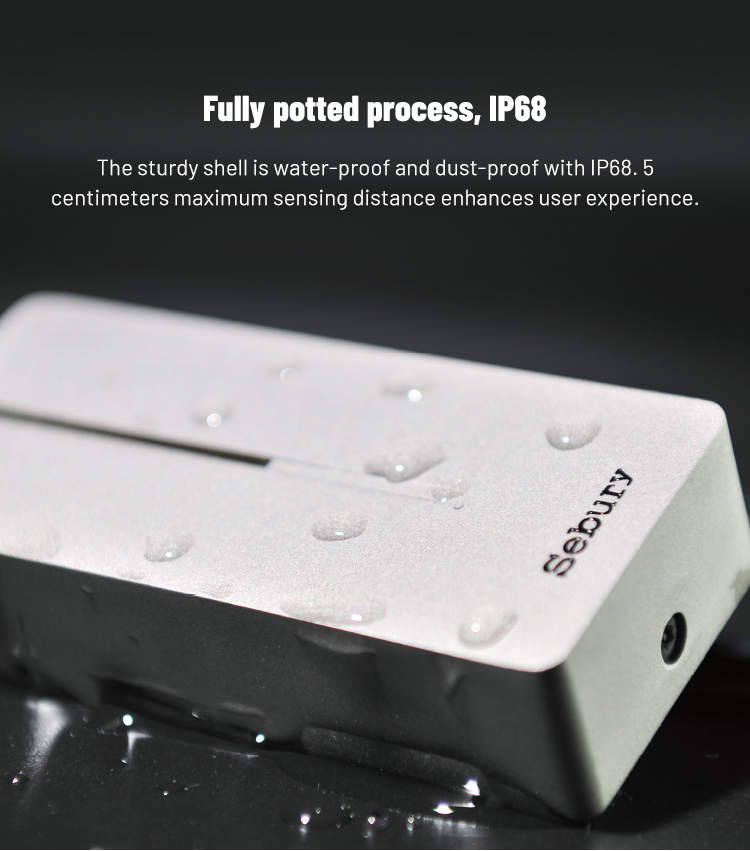

5.Fully potted process, IP68

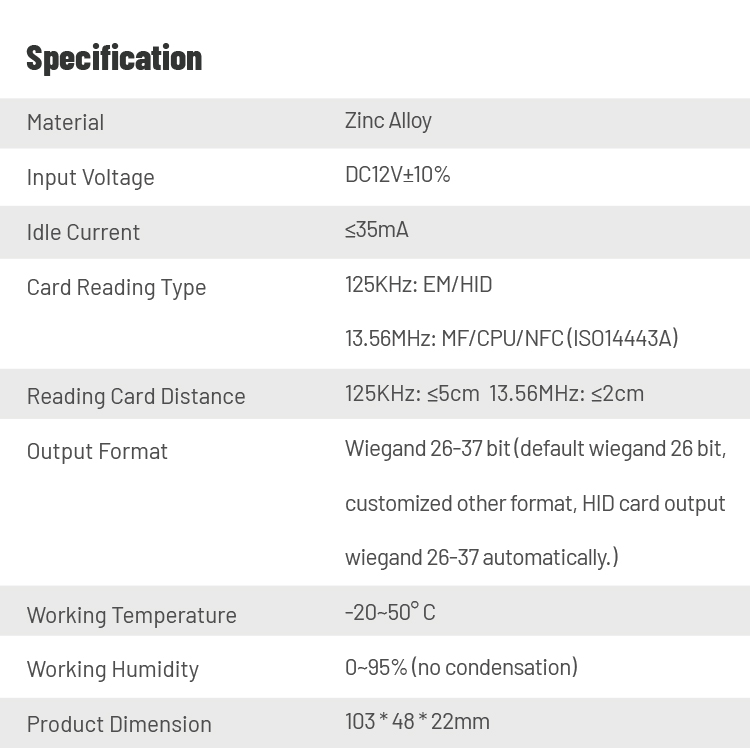

Material:Zinc Alloy

Input Voltage:DC12V±10%
Idle Current:≤35mA
Card Reading Type:125KHz: EM/HID 13.56MHz: MF/CPU/NFC (ISO14443A)

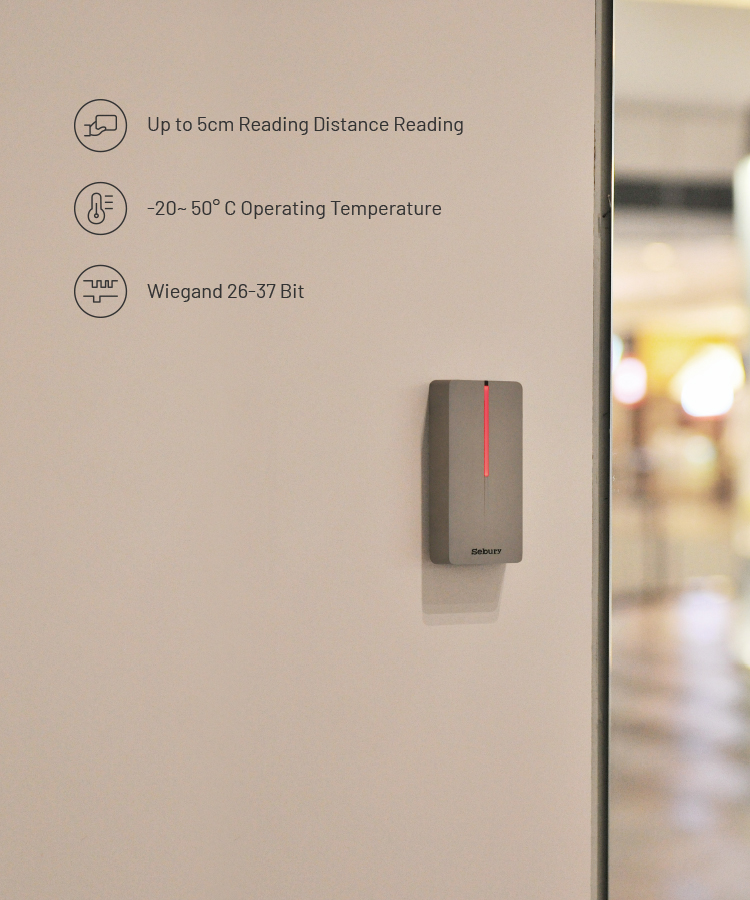

Reading Card Distance:125KHz: ≤5cm  13.56MHz: ≤2cm
Output Format:Wiegand 26-37 bit (default wiegand 26 bit, customized other format, HID card output wiegand 26-37 automatically.)
Working Temperature:-20~50° C
Working Humidity:0~95% (no condensation)
Product Dimension:83 * 83 * 27.3mm
