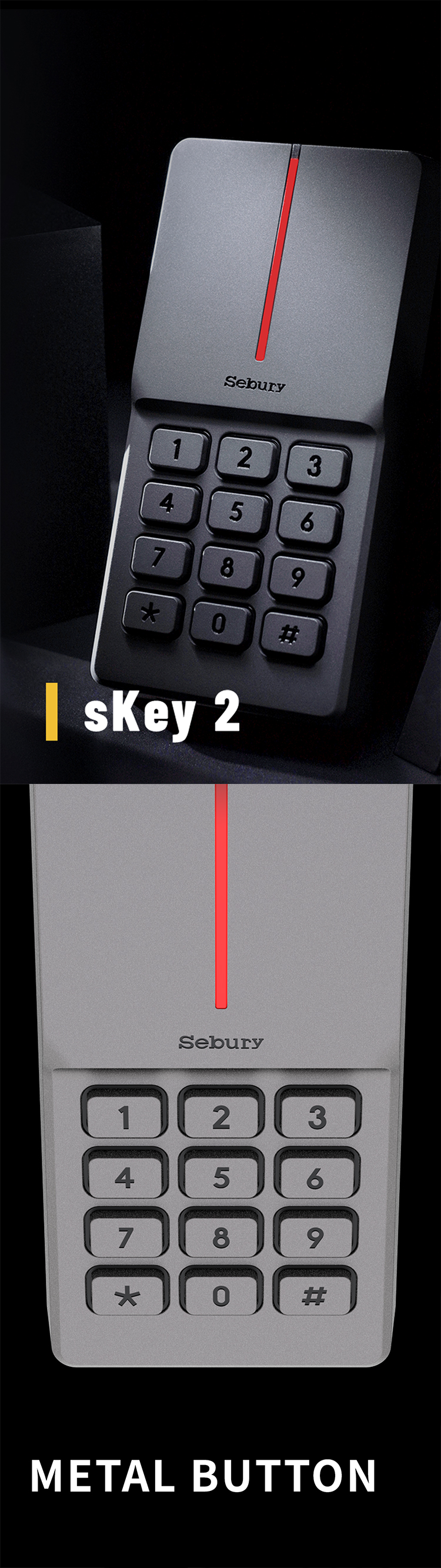

sKey 2
All-metal Password standalone access control/reader
Material:Zinc Alloy
Input Voltage:DC12~24V
Idle Current:≤50mA
Product Dimension:170 * 83 * 26mm

1.Adopt the non-electromagnetic shielding metal access control patent technology, patent NO.:CN210610015U
2.Innovative All-metal Design,no antenna window, Large metal keypad, European and American Style
3.125KHz and 13.56MHz Dual-band antenna, support  EM/HID/MF/NFC cards

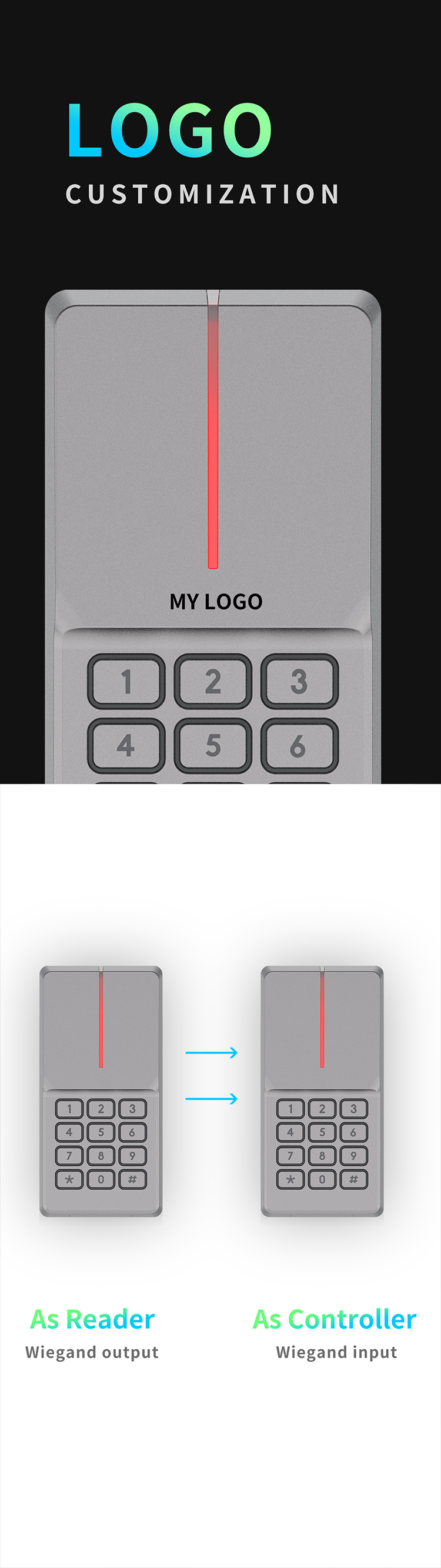

4.Standalone mode, anti-pass back mode: wiegand input, external card reader can be connected
5.Reader mode: wiegand ouput, LED and Buzzer control input

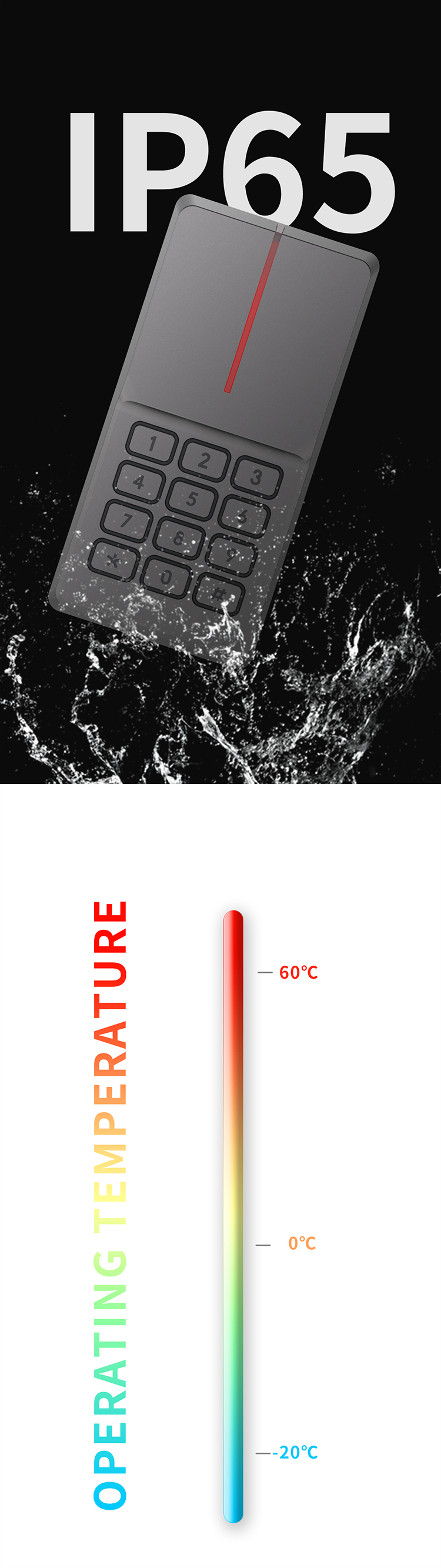

6.Fully potted process, IP68

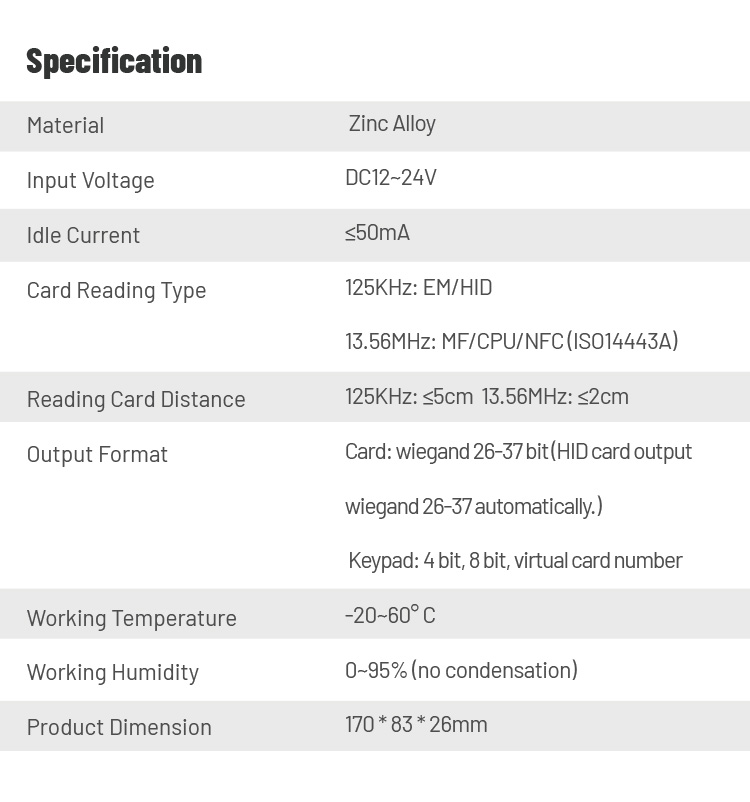

Specification

Material:Zinc Alloy

Input Voltage:DC12~24V

Idle Current:≤50mA

Card Reading Type:125KHz: EM/HID 13.56MHz: MF/CPU/NFC (ISO14443A)

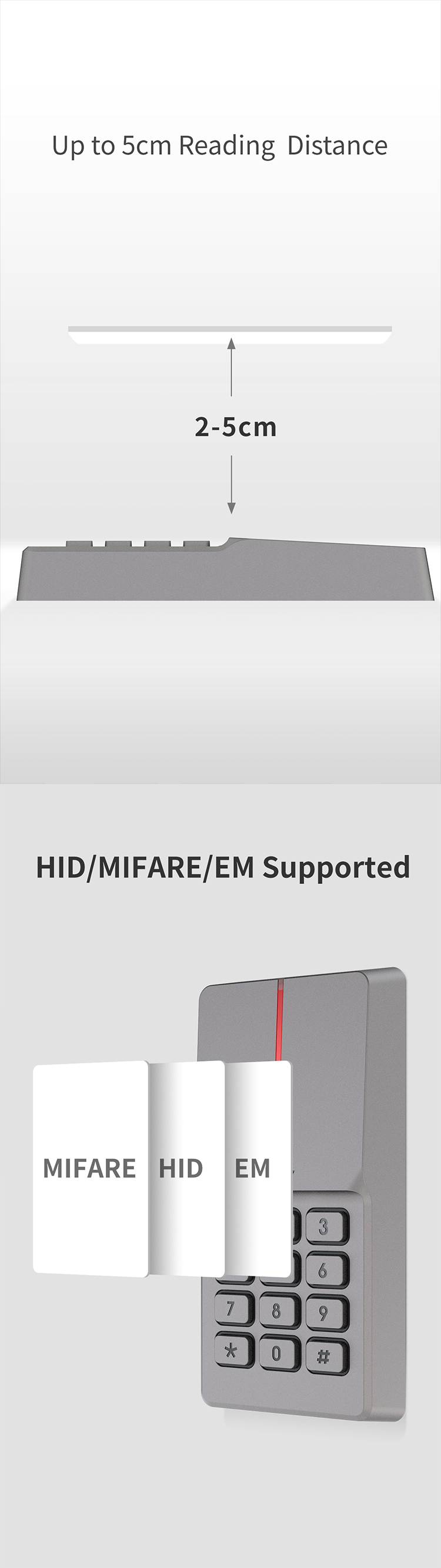

Reading Card Distance:125KHz: ≤5cm  13.56MHz: ≤2cm

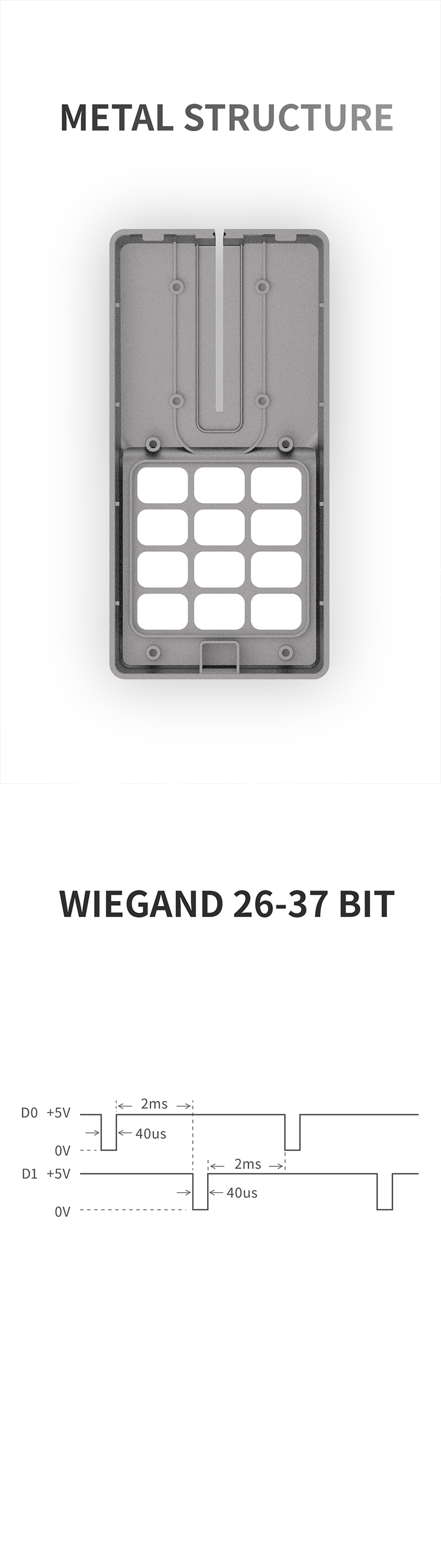

Output Format:Card: wiegand 26-37 bit (HID card output wiegand 26-37 automatically.)Keypad: 4 bit, 8 bit, virtual card number

Working Temperature:-20~60° C

Working Humidity:0~95% (no condensation)

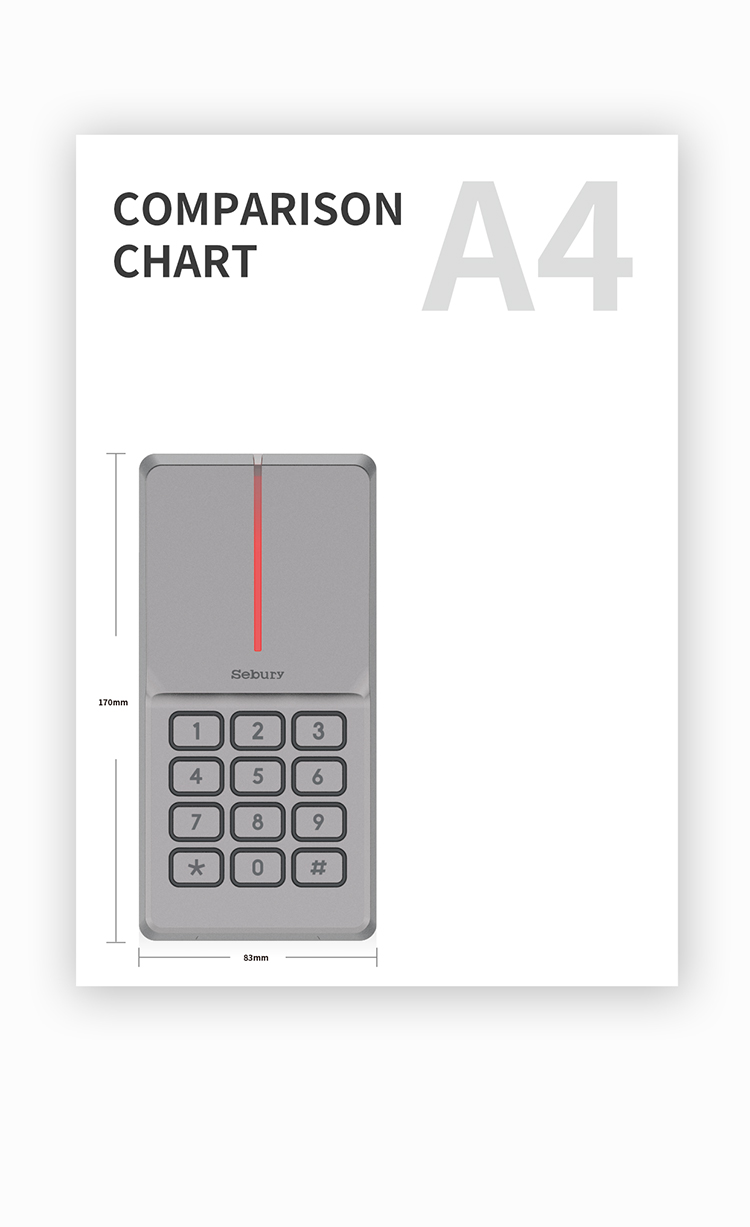

Product Dimension:170 * 83 * 26mm
